Operating Environment
41°F - 113°F (5°C - 45°C)
Coding & Marking · CIJ

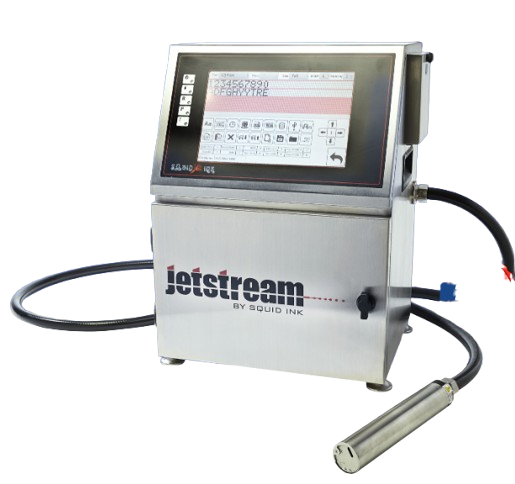

CIJ Printer (Continuous Ink Jet Printer)
Non-contact coding of dates, batch numbers, barcodes and text on plastics, metal, glass, film and cartons at up to 305 m/min - with one-button self-cleaning start and stop.
Up to 305 m / min
10.1 in touch screen, 8 GB messages
Stainless steel cabinet
CIJ PrinterFull specs
Overview
Continuous Ink Jet Printer
CIJ printer is a non-contact printer that is intended to code products in a production line very rapidly. It applies distinct and permanent prints on packaging materials through a consistent flow of small drops of ink on plastics, metals, films, glass, and cartons. Being a form of continuous ink jet printer, it functions under high speed circumstances where precise date codes, batch numbers or barcodes are necessary. It also performs well in dusty or humid environments and this makes it an option that is practical to the food, beverage, pharmaceutical and industry manufacturers that require a consistent and real time mark.
Specifications
The numbers, up front
What the machine does, at a glance - full datasheet on request.
Key specifications
Humidity Range
30 – 95% relative humidity, non-condensing
Weight
53 lbs. (24kg)
Cabinet Dimensions
19.3” (49cm) H x 14.6” (37cm) W x 12.2” (31cm) D
Electrical Requirements
90 - 240 VAC, 50/60Hz
Highlights
60μm nozzle standard
Up to 1,000 feet/minute (305m/min) 5x5 single line print speed
5 lines @ 5x5 font, 4 lines @ 7x5 font matrix
” - 0.59” (1.8mm - 15mm); up to 32 dot high font with single line of text for character height
Up to 1.2” (30mm) distance from printhead to substrate
1280x800, 10.1” LCD touchscreen
8GB message storage
That have software features for bar codes, graphics, counter, lot counter,
shift code, time and date, expiration date
One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
Applications
Where a CIJ printer fits
A continuous ink jet printer earns its place wherever codes must go on fast, moving, curved or non-porous surfaces.
Fast-moving production lines
CIJ printer inserts expiry dates or batch numbers without slacking the line.
Curved or uneven surfaces
Produces good prints when placed on bottles, cans, cables, and tubes
Wide material compatibility
A continuous ink jet printer works on plastics, metals, films, glass, and cartons.
Variable data printing
Perfect for real-time serial numbers, shift codes, or QR codes.
FAQ
Common questions
What is a CIJ printer capable of printing?
It is able to label plastics, metals, glass, films, cables, and coated cartons, and this fact makes it fit most of the packaging lines.
Does it operate at high production lines?
Yes. CIJ technology aims at constant printing as the products are loaded on a conveyor and run fast.
Is it able to print on curved surfaces or uneven surfaces?
Yes. The non-contact design can be used to have clean and readable codes on bottles, cans, tubes and other similar shapes.
What type of information may it print?
Examples of its common outputs are expiry dates, batch codes, barcodes, serial numbers and simple logos.
Does the ink smear easily?
The dry time of most inks is practically zero and they are developed to be resistant to moisture, friction and heat.
