Machine Type
Fully Automatic Sleeve Labeling Machine
Labelling · Shrink Sleeve
Fully Automatic Sleeve Labeling Machine
Applies shrink-sleeve labels to round, square and irregular containers at up to 100-300 bottles per minute, then shrinks them tight in the steam or heat tunnel.
100-300 bottles / min
PET, glass, HDPE, PP containers
Dia. 28-125 mm, height 50-300 mm
Automatic Sleeve Labeling MachineFull specs
Overview

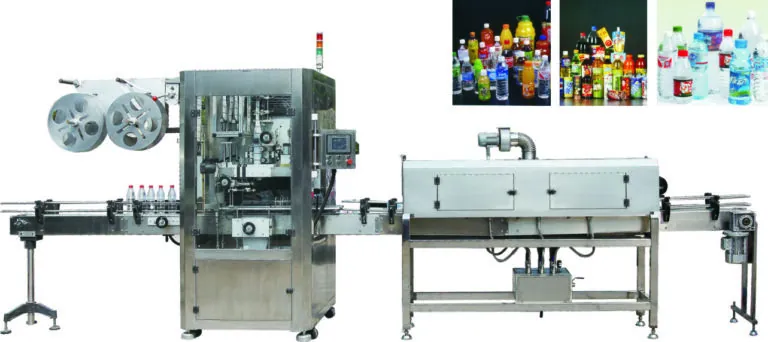

Fully Automatic Sleeve Labeling Machine
The Fully Automatic Sleeve Labeling Machine is designed for high-speed and precise application of shrink sleeve labels on a wide range of containers. It automatically places sleeve labels over bottles or containers and ensures accurate positioning before passing them through a shrink tunnel for a smooth and uniform finish.
This machine is widely used in the food and beverage, pharmaceutical, cosmetic, and household product industries, suitable for round, square, oval, and irregular-shaped containers. With stable performance, user-friendly operation, and flexible adjustment, it delivers consistent labeling quality while reducing labor costs and improving production efficiency.
Equipped with a reliable control system and high-quality components, the fully automatic sleeve labeling machine supports continuous operation and easy integration into existing production lines. It is an ideal solution for manufacturers seeking efficient, accurate, and visually appealing sleeve labeling.
Specifications
The numbers, up front
What the machine does, at a glance - full datasheet on request.
Key specifications
Labeling Method
Shrink sleeve labeling
Production Speed
Up to 100–300 bottles per minute (depending on container and label size)
Suitable Container Types
Round, square, oval, and irregular containers
Container Material
PET, glass, HDPE, PP
Applicable Container Diameter
Ø28–Ø125 mm
Applicable Container Height
50–300 mm
Sleeve Label Material
PVC / PET / OPS
Label Thickness
0.035–0.07 mm
Label Length
30–250 mm
Control System
PLC with HMI touchscreen
Power Supply
220V / 50–60Hz / Single Phase
Power Consumption
Approx. 2–3 kW
Compressed Air Requirement
5–7 bar
Machine Construction
Stainless steel (SS304)
Changeover
Tool-free and quick size adjustment
Applications
Industries, products and container shapes
Industries
Food and beverage; Pharmaceutical; Cosmetics and personal care; Household and chemical products
Applicable Products
Water, juice, carbonated drinks, and dairy products; Cooking oil, sauces, and condiments; Nutritional supplements and pharmaceutical bottles; Shampoo, detergent, and cleaning products
Container Shapes
Round bottles; Square and rectangular containers; Oval and irregular-shaped containers
How it works
Stage by stage
1
Container Infeed
Containers are automatically fed into the machine through a conveyor system from the upstream production line.
2
Sleeve Feeding
Shrink sleeve labels are automatically fed from the label roll and cut to the required length.
3
Sleeve Application
The cut sleeve is accurately placed over the container body or neck area, ensuring correct positioning.
4
Alignment & Detection
Sensors detect container position and ensure precise sleeve placement before shrinking.
5
Shrink Process
The labeled containers pass through a steam or hot air shrink tunnel, where the sleeve shrinks uniformly to fit the container.
6
Discharge
Finished products are discharged smoothly to the downstream packaging or inspection process.
FAQ
Common questions
What types of containers can be used with a fully automatic sleeve labeling machine?
The machine is suitable for round, square, oval, and irregular-shaped containers made of PET, glass, HDPE, or PP.
What sleeve label materials are supported?
The machine supports PVC, PETG, and OPS shrink sleeve labels, depending on application and shrink tunnel type.
Is the machine suitable for high-speed production lines?
Yes, the fully automatic sleeve labeling machine is designed for medium to high-speed production and can be integrated seamlessly into continuous packaging lines.
Can the machine be integrated with existing filling and packaging lines?
Yes, it is designed for inline operation and can be easily integrated with filling, capping, and downstream packaging equipment.
How easy is it to change container sizes and label formats?
The machine features quick and tool-free changeover, allowing fast adjustment for different container sizes and sleeve lengths.
Related machines
Build the rest of the line
Machines that sit before or after this one on the line - each links to its own page.
Liquid Filling Machine Malaysia
Gravity, piston, overflow and pump fillers for thin to viscous liquids.
View machine Rotary Seamer Machine
Continuous rotary double-seaming that joins lids to cans airtight and leak-proof.
View machine Automatic Tray Shrink Packing Machine
Collates bottles, cans, jars or cartons onto a corrugated tray, wraps them in LDPE film and shrinks the pack tight.
View machine Tell us your product and line speed
We configure the machine to your line and quote - usually within 2 working days.
