Machine Type
Fully Automatic Tray Shrink Packing Machine
Secondary Packaging · Tray Shrink

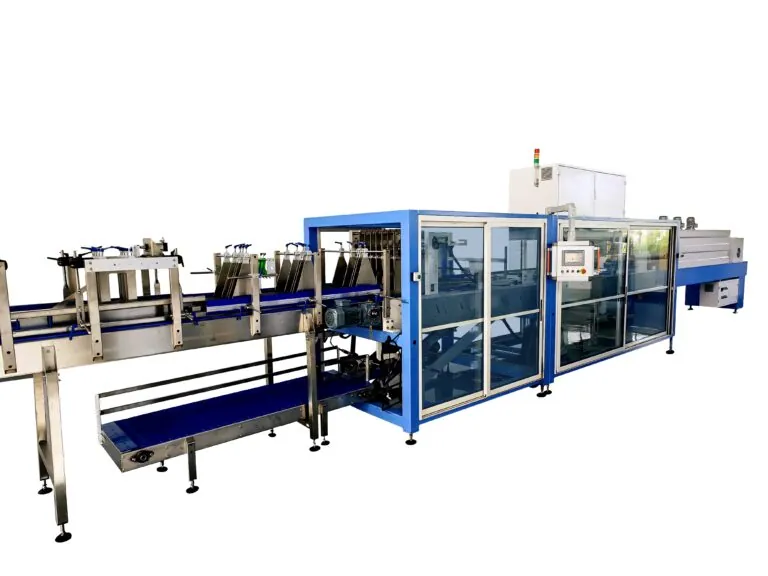

Automatic Tray Shrink Packing Machine
Collates bottles, cans, jars or cartons onto a corrugated tray, wraps them in LDPE film and shrinks the pack tight - 30-45 trays per minute, ready for the pallet.
30-45 trays / min
Tray + shrink film in one
PLC with touch screen
Automatic Tray Shrink Packing MachineFull specs
Overview
Automatic Tray Shrink Packing Machine
An Automatic Tray Shrink Packing Machine is an advanced packaging solution designed for high-speed, reliable, and cost-effective shrink wrapping of products on trays. The machine automatically collates products, places them onto trays, wraps them with shrink film, and passes them through a heat tunnel to create a tight, secure pack.
This automatic shrink packing machine is widely used in the food and beverage, FMCG, pharmaceutical, and industrial packaging sectors for packing bottles, cans, cartons, and boxes. It enhances packaging efficiency, reduces manual labor, minimizes film waste, and ensures consistent pack quality. With robust construction, user-friendly controls, and compatibility with various tray sizes and film types, the automatic tray shrink packing machine is ideal for medium- to high-volume production lines requiring durable and visually appealing packaging.
Specifications
The numbers, up front
What the machine does, at a glance - full datasheet on request.
Key specifications
Output Capacity
Up to 30–45 trays per minute (depending on product size)
Packing Style
Tray packing with shrink wrapping
Suitable Products
Bottles, cans, jars, cartons, boxes
Tray Material
Corrugated board / cardboard
Shrink Film Type
LDPE / LLDPE
Film Thickness
40–80 microns
Control System
PLC with HMI touchscreen
Power Supply
415V / 50Hz / 3 Phase
Power Consumption
Approx. 12–18 kW
Compressed Air Requirement
6–8 bar
Machine Construction
Heavy-duty MS structure with powder coating / SS cladding (optional)
Shrink Tunnel Type
Hot air circulation shrink tunnel
Changeover
Quick and easy size changeover
Safety Features
Emergency stop, safety guards, overload protection
Applicable products
What it handles
Beverage bottles and cans
Food containers and jars
Cartons and boxes
Household and FMCG products
Pharmaceutical and chemical packaging
How it works
Stage by stage
1
Product infeed
Bottles, cans, cartons, or boxes are fed automatically onto the conveyor from the production line.
2
Tray Formation & Loading
The machine forms or positions a cardboard tray and automatically places the grouped products onto the tray.
3
Shrink Film Wrapping
LDPE or LLDPE shrink film is wrapped around the tray and products using a film dispensing system.
4
Sealing
The film is precisely sealed to hold the pack firmly before shrinking.
5
Heat Shrinking
The wrapped tray passes through a hot air shrink tunnel, where the film shrinks tightly around the products.
6
Discharge
The finished, tightly packed trays exit the machine, ready for palletizing or dispatch.
FAQ
Common questions
What products can be packed using an automatic tray shrink packing machine?
It can pack bottles, cans, cartons, jars, and boxes used in food, beverage, FMCG, and industrial applications.
What type of shrink film is used?
LDPE or LLDPE shrink film is commonly used for tray shrink packaging.
Is the machine suitable for high-speed production lines?
Yes, it is designed for medium to high-volume production with consistent output.
Can tray size be customized?
Yes, the machine supports adjustable tray dimensions based on product requirements.
Is it possible to connect it to the current production lines?
Definitely. It can operate within the system of feeder, conveyor, and other packaging machinery.
