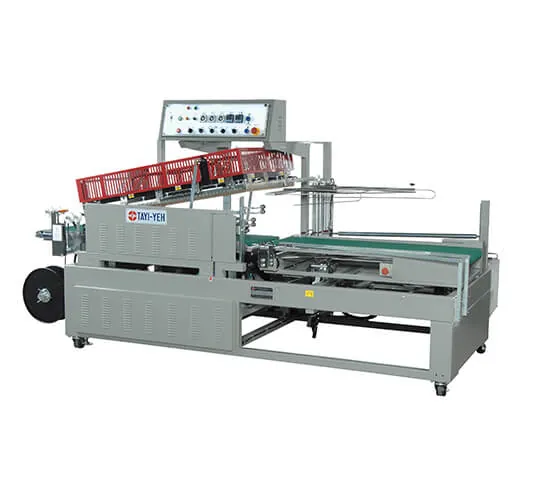

Automatic L-type Sealing Machine

The automatic L type sealer is an integrated automatic production line.

Products are fed by conveyor into the plastic sheeting and cut automatically.
It has a PLC program control as well as a specially
designed protector on the cutting head.
Center fold POF/PVC film is used to automatically dispense,wrap,and seal over your disired product. Once the product is sealed it then automatically runs through the thermal shrink tunnel where the shrink film is heat shrunk tightly around product.

Features

  • Suitable for product height 120-300mm.
  • Adjustable sealing line position.
  • Individual motor control product entry height in a sec.
  • Auto Film collection with sensor controlled.
  • Stable & efficient operation performance by Mitsubishi PLC controller
  • Apply timer relay to control on sealing & cutting time.
  • Film feeding tension is adjustable.
  • Individual pin roller, pin position & amount adjustable according to request.
  • Panasonic sensor for product entry reading.
  • Cutting blade made by 1 pc with long time operation durability.
  • Temperature controller with PID function and driven by SSR for stable heating performance.
  • Auto abnormal warning on sealing & cutting set.
  • Infeed conveyor apply roller for smooth operation.
  • Quick adjustment on product entry width.
  • Rubber roller for tight film holding with timing belt pulling.
  • Customized machine with total packaging solution is available upon request.
  • CE model available
  • Please refer shrink tunnel according to product size for shrinking application.

Specifications

Products Size: 200~400mmW, 250~600mmL, 120~300mmH
Speed: 1~15 cycle per min
Air Consumption: 230L per min
Power: 220V 60Hz
Power Consumption: 2.6KW
